Stellite 19


Stellite 19 material is Stellite alloy.

Chemical composition of Stellite 19, Stellite 19 mechanical properties, Stellite 19 datasheet, Stellite 19 equivalent grade, Heat treatment and temperature process of Stellite 19.


Stellite 19 property sheet

Stellite 19 Spec.

Chemical Composition of Stellite 19

C 1.7
Si 1.0
Mn 1.0
Cr 31.0
Ni Max 3.0
W 10.5
Co remaining
B Max 1.0
other Fe:Max 3.0

Mechanical Properties of Stellite 19

Rp0.2 (MPa) 255 (≥)
Rm (MPa) 557 (≥)
AKV (J) 42
A (%) 13
Z (%) 41
Hardness HBW 434

Stellite 19 shape and dimensions

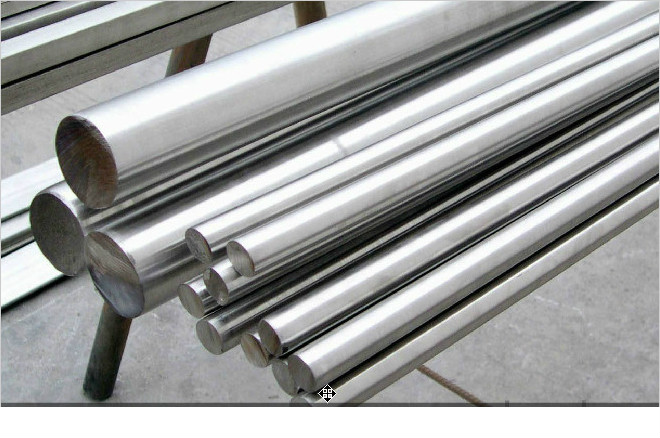

Stellite 19 Round bar: 1mm-800mm
Stellite 19 Square bar: 10mm * 10mm-600mm *600mm
Stellite 19 Flat bar: Thickness:8mm-800mm Width:10mm to 1500mm
Stellite 19 Sheet or Plate: Thickness:3mm-80mm Width:1.5mm to 1500mm
Stellite 19 Strip or Coil: Thickness:0.1mm-3mm Width:1.5mm-1500mm
Stellite 19 Forgings: Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes
